Oracle E-Business Suite 12.2.15 Installation on Windows

PART 9 - ENABLING SSL/TLS

About

Oracle 12.2.0 was released in 2015. Now is 2026 and the EBS version is upgraded to 12.2.15. During this decade, the security standard is enhanced that the old unsecure encryption algorithms are not allowed to be used anymore. Major modern browsers are not working with old standards; Java runtime library stop supporting these weak encryption algorithms.
So, if you want to enable EBS to use https protocol (inbound and outbound), you must upgrade everything to be compatible with TLSv1.2 or higher standard. Certificates must be at least SHA256 (SHA-2). All lower encryption levels are obsoleted now.
In our previous series of walkthrough, we'd already upgraded the EBS system to 12.2.15 under Windows 2019 with Oracle 19c database. However, you probably find out that none of the SSL/TLS related patches are mentioned. It is because this group of patches has to be all applied at the same time, setting up new wallet files in different locations, and changing settings in various places. Missing a change or a misconfiguration of the wallet file could make the system not able to start up properly.

Patching

After running the ETCC on the app server side, it will show a list of missing patch. For the list of Oracle home FMW - webtier 11.1.1.9.0, apply ALL these recommended patches (especially those patches for SSL/encryption), but DON'T apply these two:
- 32287205 (OSS BUNDLE PATCH 11.1.1.9.210420)
- 34067016 (POST MES4.5 UPG NZOS_HANDSHAKE DOES NOT SEND CERTIFICATE CA NAMES WHEN REQUESTING MUTUAL_AUTH)
You can get these 2 patches (as well as other recommended patches) from patch 33845432 (ETCC: REHOST 33800106 BSU.SH EHANCEMENT V.5)
You MUST make all the following changes first, and then you can finally apply these 2 particular patches. Failure to do so will make the web tier processes not able to start up!

Upgrade JDK

You must update these two JRE 7 to the latest version (current version is build 1.7.0_351-b07).
- AF_JRE_TOP C:\oracle\[SID]\fs1\EBSapps\comn\util\jdk64\jre
- OA_JRE_TOP C:\oracle\[SID]\fs1\EBSapps\comn\util\jdk32\jre
  - You can get this JRE from patch 34170415 (Oracle SERVER JRE 7 Update 351)

Create new wallet file

Warning
Do not use the Wallet Manager (the GUI application) to create wallet file. Wallet must be created and modified by command orapki.

Create a temp folder e.g. C:\oracle[SID]\cert. You will create the wallet in this folder, then copy the wallet to different locations.

Start the app profile, and change to this folder, then set the orapki command located in %FMW_HOME%\oracle_common\bin in system path:


xxxxxxxxxx
cd C:\oracle\[SID]\cert
SET PATH=%FMW_HOME%\oracle_common\bin;%PATH%

Create a new empty wallet file cwallet.sso. Make this wallet be auto-login (no passphrase needed).


xxxxxxxxxx
orapki wallet create ^
-nologo ^
-wallet . ^
-auto_login_only

Decide the Distinguish Name DN of the new certificate first; use the FQDN as the CN value. Then add a new sha256 certificate, and self-signed this certificate; all are stored in this wallet file.


xxxxxxxxxx
SET DN="C=CA,ST=Ontario,L=Toronto,O=symbolthree.com,OU=Finance,CN=demo.symbolthree.com"

orapki wallet add ^
-wallet . ^
-dn %DN% ^
-asym_alg RSA ^
-keysize 2048 ^
-sign_alg sha256 ^
-self_signed ^
-validity 3652 ^
-auto_login_only

Show the content of the wallet file. The new certificate is served as both Certificate Authority (CA) and user certificate.


xxxxxxxxxx
orapki wallet display -wallet .

Oracle PKI Tool : Version 11.1.1.9.0
Copyright (c) 2004, 2015, Oracle and/or its affiliates. All rights reserved.

Requested Certificates:
User Certificates:
Subject: C=CA,ST=Ontario,L=Toronto,O=symbolthree.com,OU=Finance,CN=demo.symbolthree.com
Trusted Certificates:
Subject: C=CA,ST=Ontario,L=Toronto,O=symbolthree.com,OU=Finance,CN=demo.symbolthree.com

Replace the cwallet.sso file in these folders:
- %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OPMN\opmn\wallet
- %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OHS\EBS_web_[SID]\proxy-wallet
- %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OHS\EBS_web_[SID]\keystores\default
- %FMW_HOME%\user_projects\domains\EBS_domain_[SID]\opmn\EBS_web_[SID]_OHS1\wallet
- %FMW_HOME%\user_projects\domains\EBS_domain_[SID]\opmn\EBS_web_[SID]_OHS1\EBS_web_[SID]\wallet

Add Java Parameter

Need to add Java parameter -DUseSunHttpHandler=true -Dhttps.protocols=TLSv1.2 to different places so that TLS1.2 is used for https connection.
- Open %CONTEXT_FILE%, append this Java parameter at the end for context variable s_nm_jvm_startup_properties. Then run %ADMIN_SCRIPTS_HOME%\adautocfg.cmd to populate this parameter in different script files.

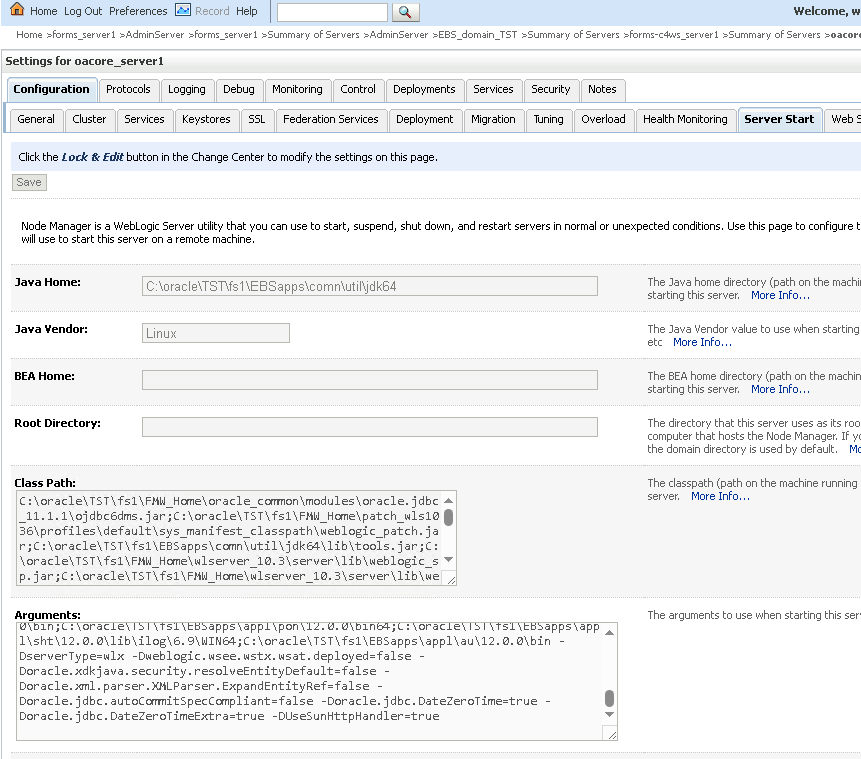

- Log on to the Weblogic Admin Console, click Lock and Edit. For the following servers, select Configuration -> Server Start. In Arguments value, append this Java parameter at the end.
  - forms-c4ws_server1
  - forms_server1
  - oacore_server1
  - oafm_server1
- Click Activate Change to save the changes.

Change OHS SSL Settings

Need to force to use TLS1.2 and SHA2 in these Oracle HTTP server config files:
- %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OHS\EBS_web_[SID]\ssl.conf
- %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OHS\EBS_web_[SID]\admin.conf

Search for SSLCipherSuite and SSLProtocol. Replace the parameter values as follows:


xxxxxxxxxx
SSLCipherSuite HIGH:MEDIUM
SSLProtocol TLSv1.2

Change OPMN SSL Settings

Open file %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OPMN\opmn\opmn.xml. Search for the ssl node, and change the attributes as below:


xxxxxxxxxx
<ssl enabled="true"
  wallet-file="<path to your wallet>"
  ssl-versions="TLSv1.2"
  ssl-ciphers="SSL_RSA_WITH_AES_128_CBC_SHA,SSL_RSA_WITH_AES_128_GCM_SHA256" />

Apply 32287205 and 34067016

Now you can apply these 2 patches. Then start up all web tier services and make sure everything is good.
At this point, the new cwallet.sso files are used internally and working fine. The outbound URL is still non-http (http://[app server]:8000) because SSL connection is not turned on yet.
The wallet file we just created uses self-signed certificate. Current modern browsers do not like self-signed certificate, even this certificate is explicitly trusted. It still gives all kinds of complain to say this connection is not secure. So we need to create a more proper certificate that is acceptable by various browsers.

Create new wallet for OHS

Note
Details about program X - Certificate and Key management (XCA) can by found in Jar Signing for In-House Oracle EBS R12.2 Instance

Make a copy of cwallet.sso we just created.

Export the certificate signing request from this wallet file


xxxxxxxxxx
set PATH=%FMW_HOME%\oracle_common\bin;%PATH%
SET DN="C=CA,ST=Ontario,L=Toronto,O=symbolthree.com,OU=Finance,CN=demo.symbolthree.com"

orapki wallet export ^
-wallet . ^
-nologo ^
-dn %DN% ^
-request request.pem

The signing request file request.pem is created. Get this request signed by your own CA.

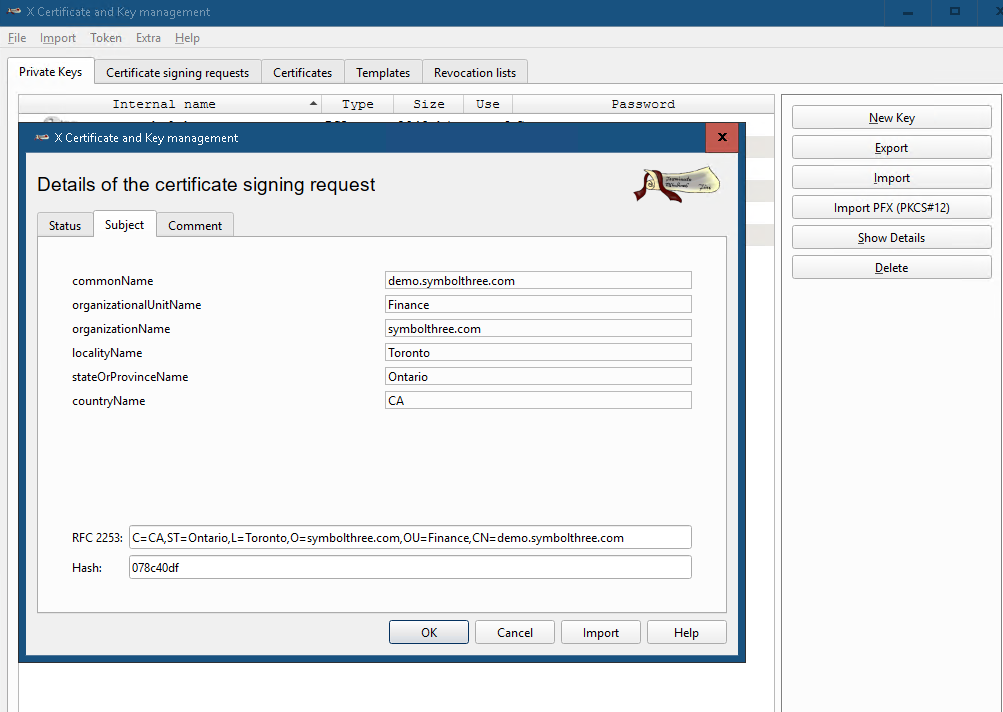

Import this certificate request file in XCA:

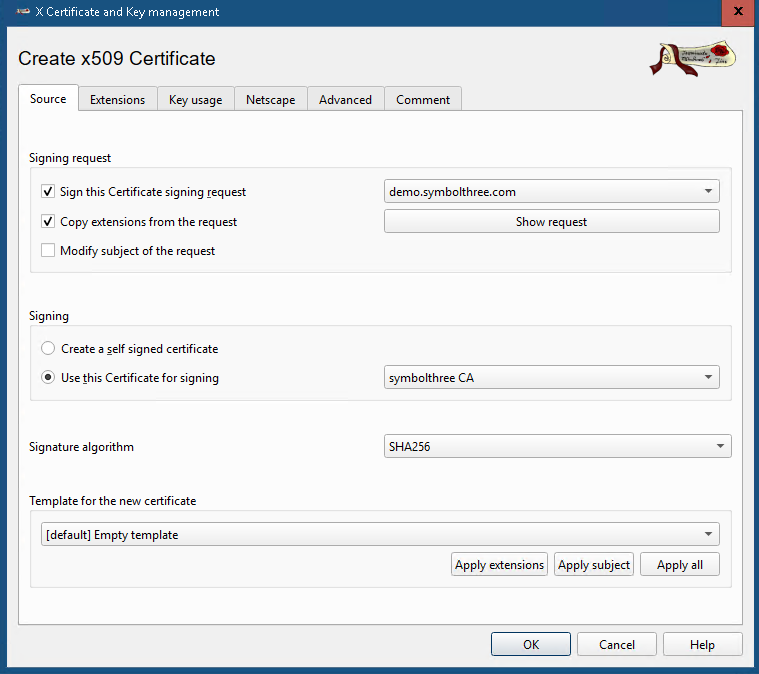

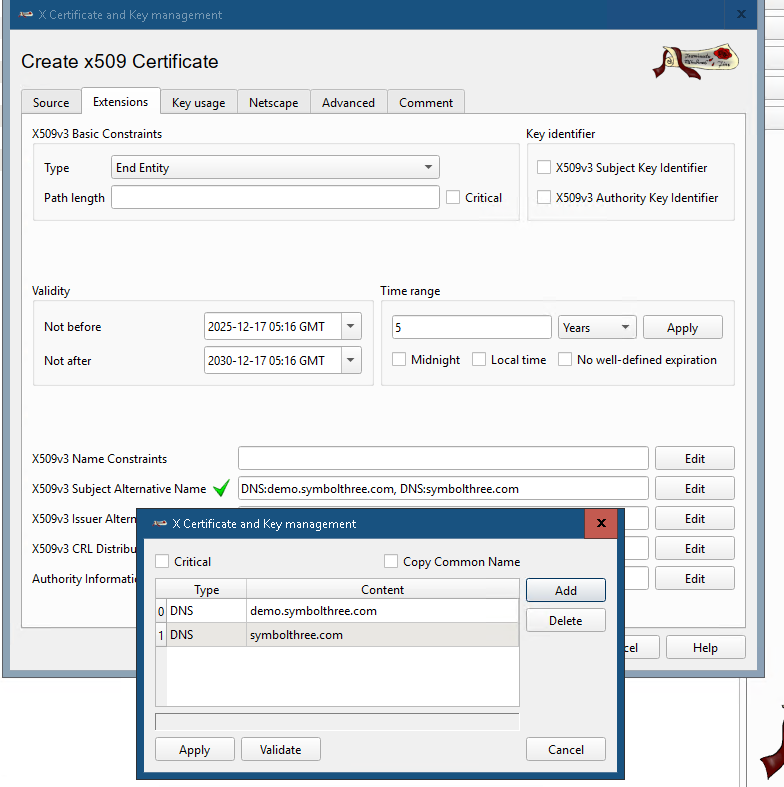

- Sign this certificate with your own CA. Make sure you add X509v3 Subject Alternative Name, DNS value of the EBS full URL and domain name.
In XCA, export the signed certificate to file cert.pem in PEM format. Also export the CA certificate to file CA.pem in PEM format. Transfer these 2 files to app server C:\oracle\cert folder where the file cwallet.sso resided.

Remove the self-signed certificate in both user and trusted sections in cwallet.sso:


xxxxxxxxxx
orapki wallet remove ^
-wallet . ^
-user_cert ^
-dn %DN% ^
-auto_login_only

orapki wallet remove ^
-wallet . ^
-trusted_cert ^
-dn %DN% ^
-auto_login_only

Add the CA certificate to trusted section


xxxxxxxxxx
orapki wallet add ^
-wallet . ^
-nologo ^
-auto_login_only ^
-trusted_cert ^
-cert CA.pem

Add the signed certificate to user section


xxxxxxxxxx
orapki wallet add ^
-wallet . ^
-nologo ^
-auto_login_only ^
-user_cert ^
-cert cert.pem

Show the content of the wallet to verify that all certificates are in place


xxxxxxxxxx
orapki wallet display -nologo -wallet .

Requested Certificates:
User Certificates:
Subject: C=CA,ST=Ontario,L=Toronto,O=symbolthree.com,OU=Finance,CN=demo.symbolthree.com
Trusted Certificates:
Subject: EmailAddress=admin@symbolthree.com,CN=symbolthree.com,OU=IT,O=symbolthree.com,L=TORONTO,ST=ONTARIO,C=CA

Copy the new cwallet.sso file to OHS keystore default location:
- %FMW_HOME%\webtier\instances\EBS_web_[SID]_OHS1\config\OHS\EBS_web_[SID]\keystores\default

Open %CONTEXT_FILE% and change the following parameters:

Parameter	Value
s_url_protocol	https
s_local_url_protocol	https
s_webentryurlprotocol	https
s_active_webport	4443
s_webssl_port	4443
s_https_listen_parameter	4443
s_login_page	`https://[app server host]:4443/OA_HTML/AppsLogin`
s_external_url	`https://[app server host]:4443`

Run %ADMIN_SCRIPTS_HOME%\adautocfg.cmd to update all script files and profile options.
- Ignore the error of ibywebprf.cmd INSTE8_PRF
Use %ADMIN_SCRIPTS_HOME%\adstpall.cmd/adstrtal.cmd scripts to stop and restart all services. The web entry point now is https://[app server host]:4443/OA_HTML/AppsLogin.

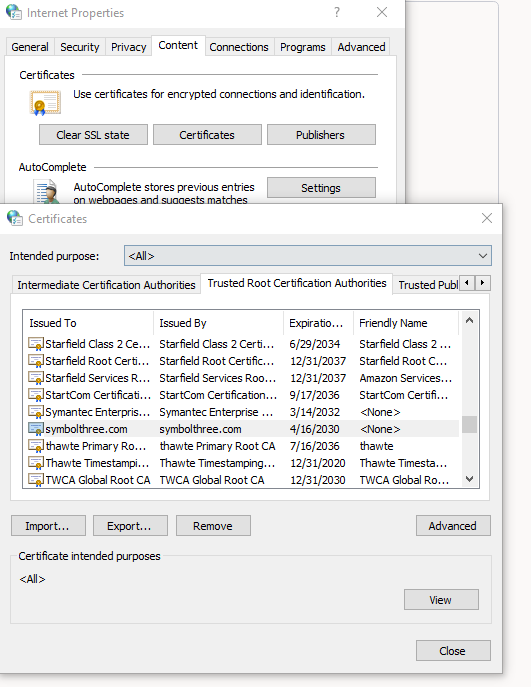

If your CA certificate is not trusted by your browser, open the Internet Properties (inetcpl.cpl), then import the CA.pem file to the Trusted Root Certificate Authority section.

Sign certificate
