3. IDM Installation ‐ Part 4

After all the provisioning steps are done, you should find the summary file regarding your IDM instance:

/oracle/idm/Oracle_IDMLCM1/provisioning/bin/provision.summary

xxxxxxxxxx
Summary
  Global Settings
    Name: Identity Management Provisioning Response File
    Version: Ver 1.0
    Created By: oracle
    Created Date: 2015-03-10 13:06:25 EDT
    Installation and configuration directories
      Installers Directory Location: /mnt/STAGE
      Application Base: /oracle/idm
      Applications Configuration: /oracle/idm/config
  Identity and Policy Management
    OIM
      OIM Admin Server Host: faidm-test.symbolthree.com
      OIM Admin Server Port: 7001
      OIM Managed Server Host: faidm-test.symbolthree.com
      OIM Managed Server Port: 14000
    OAM
      OAM Admin Server Port: 7001
      OAM AAA Server Host: faidm-test.symbolthree.com
      OAM AAA Server Port: 14100
    OHS Settings
      OHS Port: 7777

• However, this summary page is not really useful to know what are the URLs of each IDM component.

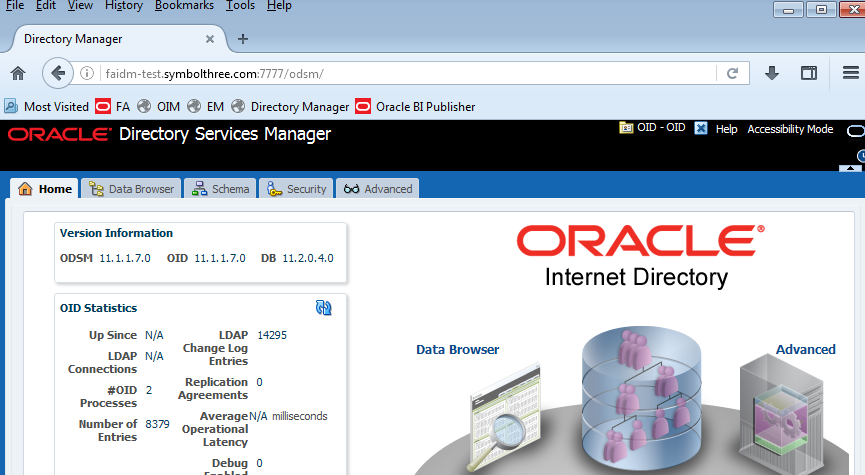

ODSM (OID and OVD)

http://faidm-test.symbolthree.com:7777/odsm/

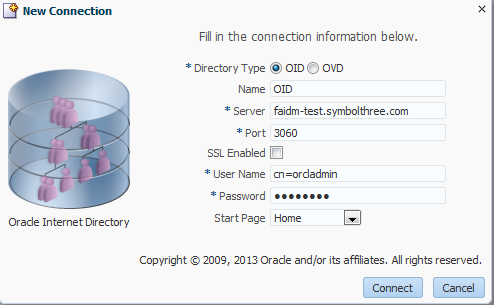

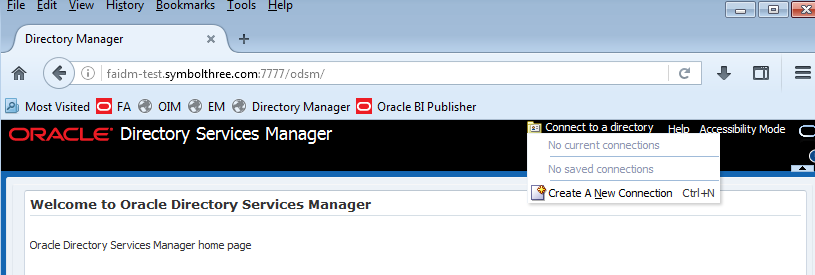

• Select connect to a directory and then create a new connection. Credentials are cn=orcladmin / Welcome1:

OID

OVD

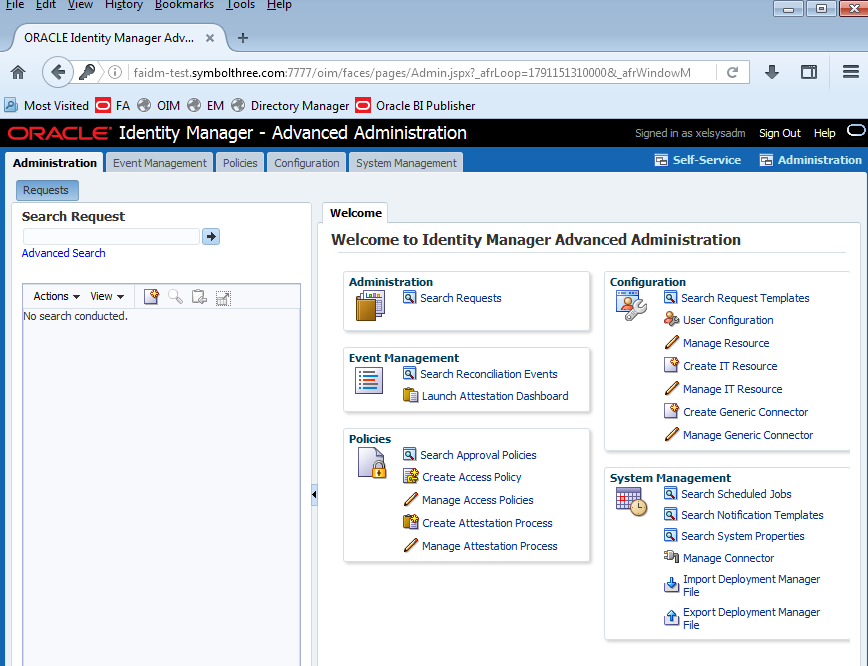

OIM

http://faidm-test.symbolthree.com:7777/oim/

• Credentials: xelsysadm / Welcome1

SOA Infrastructure

http://faidm-test.symbolthree.com:7777/soa-infra/

• Credentials: weblogic_idm / Welcome1

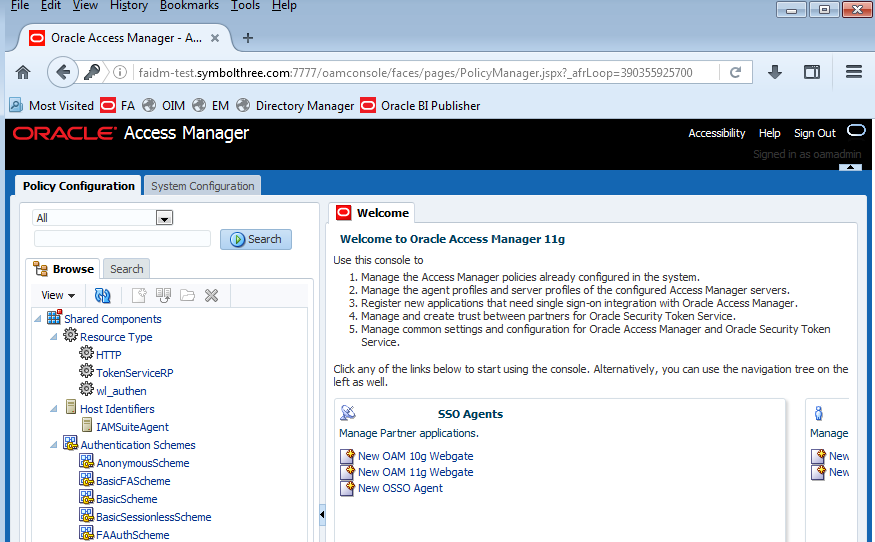

OAM

http://faidm-test.symbolthree.com:7777/oamconsole/

• Credentials: oamadmin / Welcome1

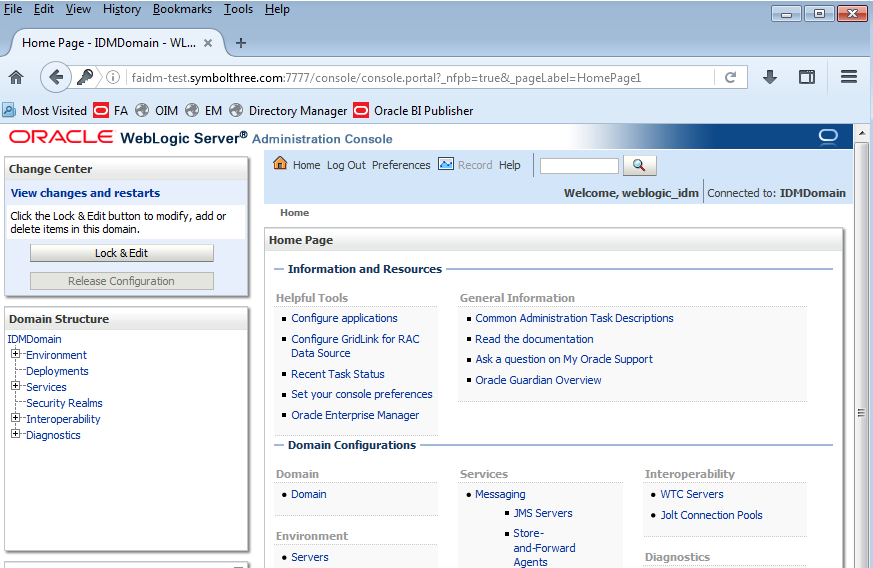

Weblogic Console

http://faidm-test.symbolthree.com:7777/console/

• Credentials: weblogic_idm / Welcome1

Post-Installation Configuration

OAM

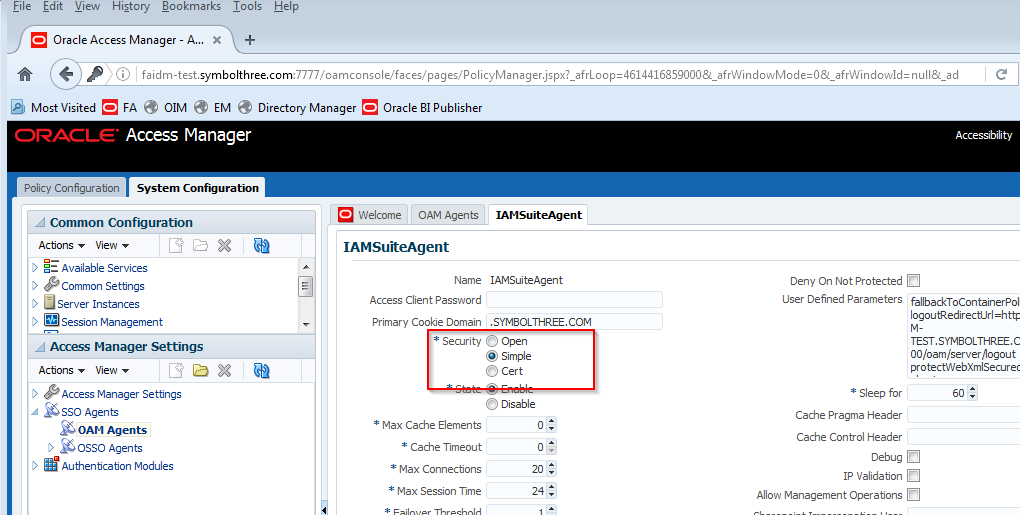

• System Configuration -> Access Manager Settings -> SSO Agent -> OAM Agent -> IAMSuiteAgent

set Security to Simple

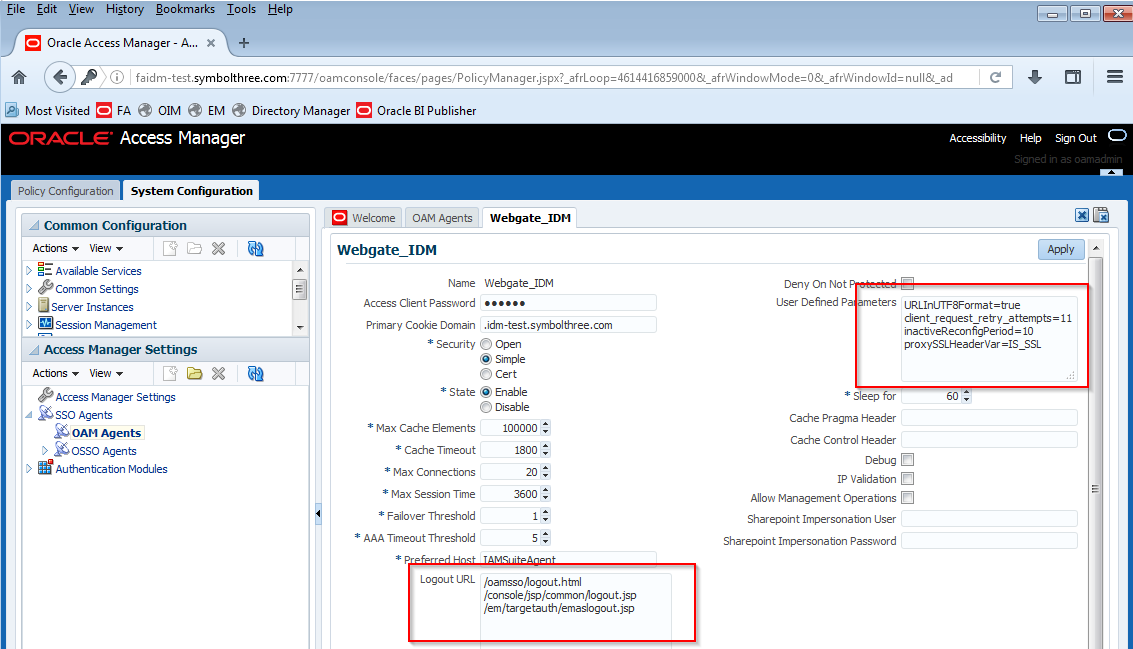

• Select a WebGate agent. (Webgate_IDM and Webgate_IDM_11g)

• Set the AAA Timeout Threshold to 5

• In the User Defined Parameters box, set client_request_retry_attempts to 11.

• If the following logout URLs are not listed, add them.

xxxxxxxxxx
/oamsso/logout.html
/console/jsp/common/logout.jsp
/em/targetauth/emaslogout.jsp

• Policy Configuration -> Application Domain -> IAMSuite -> Resource -> Click New Resource

xxxxxxxxxx
Type: HTTP
Description: OAM Credential Collector
Host Identifier: IAMSuiteAgent
Resource URL: /oam
Protection Level: Unprotected
Authentication Policy: Public Policy
